Folding Container House
Z Folding Prefab house
Environmental protection quick installation windproof lightweight
| External Dimensions(mm) | 5950L*2450W*2540H |
| Package Size(mm) | 5950L*2200W*520H |
| Total Weight (kg) | 1250KG |
| Container Loading | 40HC-6units |
| Installation | 4Workers-30mins |
Product Overview

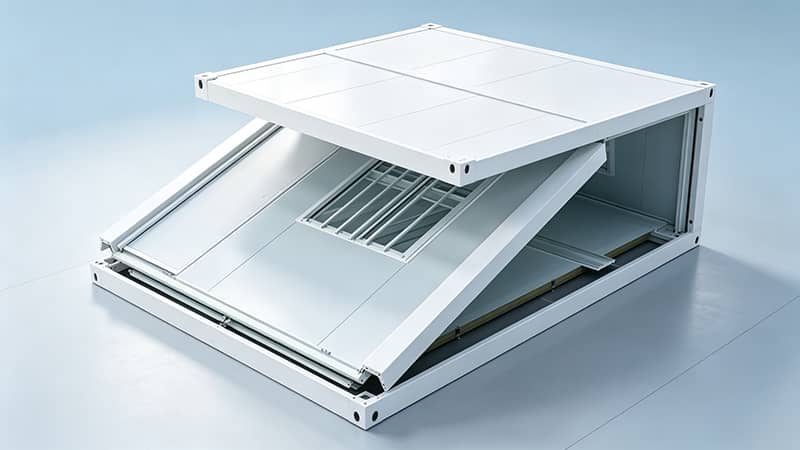

The FONZE HOUSE Z Folding Prefab House uses a unique Z-shaped folding mechanism that compresses the entire unit to roughly one-quarter of its deployed size. This dramatically reduces transportation volume and cost, making it ideal for projects that require frequent relocation, overseas shipping, or remote site delivery.
Each unit is built with a galvanized cold-rolled steel frame (Q235), 50mm rock-wool / EPS sandwich wall panels, and a complete electrical distribution system pre-installed in the factory. A 20ft unit can be unfolded and secured in place by 3-4 workers within 1-2 hours, with no welding or heavy machinery required on site.
Common applications include site offices, dormitories, schools, clinics, retail kiosks, and emergency-response housing. The interior layout, doors, windows, electrical fittings, and finishing materials can all be customized to match your project requirements and local climate.
Structure & Materials
| Section | Item | Specification |
|---|---|---|
| Roof system | Roof main beam | Galvanized cold-rolled steel, 5530×1900×180mm, t=1.95mm, galvanizing 120g/m² (1 pc) |
| Roof system | Roof secondary beam | 37×77mm galvanized C-shaped steel, wall t=1.1mm, material Q235 (7 pcs) |
| Roof system | Top bridge pier | Galvanized cold-rolled steel, 210×150×200mm, top corner panel t=3.0mm, top corner panel t=7.0mm, drainage panel t=3.0mm, galvanizing 120g/m² (4 pcs) |
| Roof system | Roof panel | Aluminum zinc color steel plate, white gray, 360° bite t=0.37mm (1 pc) |
| Roof system | Thermal insulation cotton | 100mm glass fiber cotton felt, single-sided aluminum foil, bulk density ≥ 14kg/m³, Class A non-combustible (1 pc) |
| Ground system | Ground main beam | Galvanized cold-rolled steel, 5530×1900×160mm, t=1.95mm, galvanizing 120g/m², plate surface 410mm (1 pc) |
| Ground system | Ground secondary beam | 50×120mm galvanized C-shaped steel, wall t=1.2mm, material Q235 (9 pcs) |
| Ground system | Bottom bridge pier | Galvanized cold-rolled steel, 210×150×160mm, bottom corner top plate t=7.0mm, connecting L piece t=8.0mm, bottom corner surround plate t=3.0mm, galvanizing 120g/m² (4 pcs) |
| Ground system | Decorative surface layer | White gray multi-layer composite PVC floor leather, flame retardant A-level, t=1.6mm (1 pc) |
| Ground system | Basal | Cement glass magnesium board, density ≥ 1.2g/m³, flame retardant Grade A, t=18mm (1 pc) |
| Distribution | Wire — Household power cord | 6.0mm² household power cord (0.7 m) |
| Distribution | Wire — Air conditioning line | 4.0mm² air conditioning line (4 m) |
| Distribution | Wire — Socket cable | 2.5mm² socket cable (17 m) |
| Distribution | Wire — Lighting switch wire | 1.5mm² lighting switch wire (13 m) |
| Distribution | Circuit breaker | Delixi circuit breaker equipped with residual current switch (1 pc) |
| Distribution | Lighting — LED strip | 30W LED strip light (2 pcs) |
| Distribution | Lighting — Five hole socket | Five hole socket (3 pcs) |
| Distribution | Lighting — Three hole AC socket | Three hole air conditioning socket (1 pc) |
| Distribution | Lighting — Single open switch | Single open switch (1 pc) |
| Corner pillar | Corner pillar | Galvanized cold-rolled steel, 2535×150×210mm, t=2.3mm (4 pcs) |
| Ceiling | Ceiling | Aluminum zinc color steel plate, 831×2815mm, t=0.28mm (7 pcs) |
| Panel | Panel | 1150×1950×50mm color steel sandwich rock wool board / EPS, inner & outer plates 0.25mm aluminum zinc color steel plate (14 pcs) |
| Door | Door | Steel door, 940×1990mm (1 pc) |
| Window | Window | PVC sliding window with screen, 1150×1100mm, single-layer glass (2 pcs) |
Customization Options
| Category | Available Options |
|---|---|
| Door | Broken-bridge aluminum swing door with side window / Broken-bridge aluminum double swing door / Broken-bridge aluminum sliding door / Ti-Mg alloy sliding door / KFC-style aluminum door / Standard steel door / Broken-bridge aluminum double-leaf door |
| Window | Broken-bridge aluminum sliding window / Broken-bridge aluminum casement window / Aluminum sliding window / Aluminum casement window / Broken-bridge aluminum awning window / uPVC casement window / Broken-bridge aluminum double-glazed casement window |
| Socket | US standard (Type A/B) / AU/NZ standard (Type I) / CN standard (5-hole) / EU standard (Type F/Schuko) / IT standard (Type L) / IL standard (Type H) / UK standard (Type G) / IN/ZA standard (Type D/M) / US UL-certified wire socket |
| Floor | White pine vinyl sheet / Grey pear wood vinyl sheet / Palm wood vinyl sheet / Light grey vinyl sheet / Engineered wood flooring / SPC rigid vinyl plank / Kitchen wall cabinet |
| Bathroom | Wet & dry separated bathroom / Glass shower enclosure / Vanity cabinet with mirror / AU-standard plumbing fittings / Ceramic floor tile |
Factory Direct Price
No middlemen, save 15-20% compared to trading companies
Rapid Assembly
2 workers can complete one unit in 4-6 hours, saving labor costs
Flat-pack Shipping
6-8 units per 40HQ container, significantly reducing sea freight
Galvanized Steel Frame
Hot-dip galvanized, anti-corrosion, 20+ years service life
Customizable Design
Support size, color, door/window, electrical standard customization
Fast Delivery
Standard products ready in 10-15 working days
One-stop Service
Design → Production → Shipping → Installation guidance, full process support
Quality Certification
ISO 9001 / CE / SGS certified (if applicable)
Packaging & Shipping
Flat-pack components loaded into container
Secured with steel straps for sea freight
Ready for port delivery and global shipping
Quality inspection before shipment
Shipping & Delivery
| Item | Standard Model | Customized Model |
|---|---|---|
| Production Time | 5-15 days | 10-25 days |
| Sea Freight | 10-25 days | 15-35 days |
| Port of Loading | Tianjin (default), optional: Qingdao / Shanghai / Guangzhou / Shenzhen | |
Installation Support
Each shipment includes detailed installation manuals with step-by-step instructions. We also provide video guides and remote technical support to ensure smooth on-site assembly. For large orders, we can arrange on-site installation guidance by our experienced engineers.On-site Installation Service
- Available for domestic and international projects
- Additional costs: engineer visa, travel expenses, accommodation, and installation guidance fees
- For overseas projects: we typically provide remote technical guidance while local workers complete the installation
Foundation Requirements
- Flat and level ground surface is required
- Brick leveling pads are also acceptable as foundation
- No complex foundation work needed for most models
Unloading & Handling
- Forklift is recommended for efficient unloading
- Manual unloading is possible when forklift is not available
- Please ensure adequate space and equipment at the delivery site
